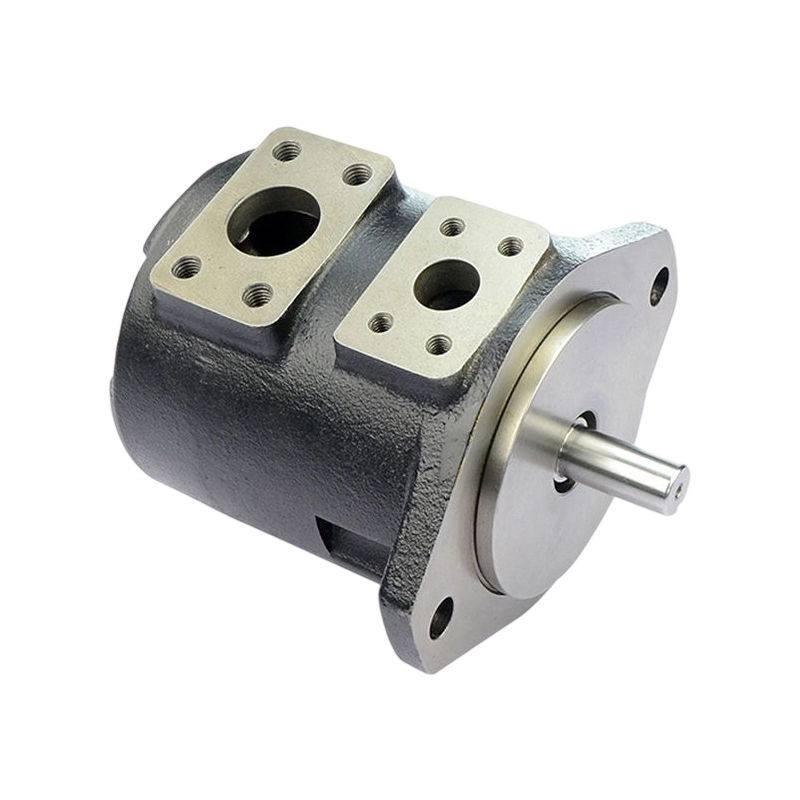

SQP Series Single Fixed Displacement Vane Pump

Name: SQP Series Single Fixed Displacement Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: SQP Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	SQP Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

SQP Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

SQP Series Single Fixed Displacement Vane Pump

Features of This Series

This series is a high-pressure, high-performance sub-master vane pump specially developed for low-noise working conditions. It is suitable for hydraulic systems requiring low noise, such as plastic machinery, die-casting machinery, machine tools, and engineering machinery. Its main features are as follows:

The pump core adopts the sub-master vane pump core of the V series, which is fully interchangeable, making it more flexible and convenient to use.

The design of a pulsation attenuation structure is added, which greatly reduces pressure pulsation, resulting in lower noise and smoother sound quality.

The thickened casing design enhances the pump's strength and vibration resistance, while achieving superior sound insulation performance.

Single Pump Operating Specifications

Series	Code (Usgpm)	Geometric Displacement (ml/r)	With antiwear hydraulic oil or phosphate ester fluid		With water glycol fluid		With water-oil emulsons		Min.speed (rpm)
Series	Code (Usgpm)	Geometric Displacement (ml/r)	Max. Operating Pressure (Mpa)	Max. Speed (rpm)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Max. Operating Pressure (Mpa)	Max. Speed (rpm)	Min.speed (rpm)
SQP1	2	7.5	14	1800	14	1500	7	1200	600
	3	10	14		14
	4	13	17.5		16
	5	16.5
	6	19
	7	23
	8	27
	9	30
	10	32
	11	36
	12	40	16
	14	45	14		14
SQP2	10	32.5	17.5		16
	12	39
	14	45
	15	47
	17	55)
	19	60
	21	67
SQP3	21	67	17.5		16
	25	81
	30	97
	32	101
	35	112
	38	121
SQP4	42	138	17.5		16
	45	147
	50	162
	57	181
	60	193
	66	212
	75	237	14		14
