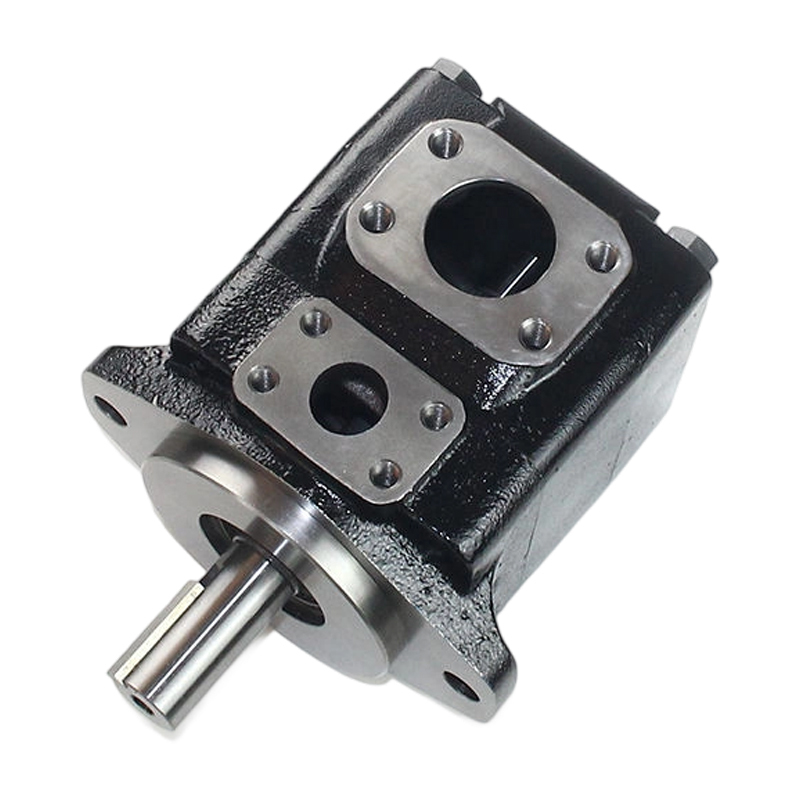

T6 Series Single Hydraulic Vane Pump for Refining Equipment T6C T6D T6E

Name: T6 Series Single Hydraulic Vane Pump for Refining Equipment T6C T6D T6E
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: T6 Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	T6 Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

T6 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

T6 hydraulic vane pump

refining equipment vane pump

single hydraulic vane pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

T6 Series Single Hydraulic Vane Pump for Refining Equipment T6C T6D T6E

This is a high-pressure, high-performance dowel pin vane pump, widely used in plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery and marine machinery.

Features

1. It adopts a dowel pin vane structure, allowing it to work under high pressure with low noise and a long service life.

2. The vane pump is compatible with hydraulic media of a wide viscosity range, and can start at low temperatures and operate at high temperatures.

3. Thanks to the bilabial vane design, the pump has strong resistance to oil pollution and a wide speed range.

Model Number Designation

T6C	-17	-1	R	00	-A	1
Code of series	Flow code	Shaft type	Direction of rotation	Outlet Positions	Designing No.	Sealing Level
T6C	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31	See of shaft	(viewed from shaft end of pump) R-right hand for clockwise L-left hand for counter clockwise	(viewed from shaft end of pump) 00:Opposite inlet port 01: Inline with inlet 02: 90° CCW from inlet 03: 90° CW from inlet	A	1-S1: Nitrile rubber (NBR) 5-S5: Fluororubber
T6D	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61
T6E	42, 45, 50, 52, 57, 62, 66, 72, 85

Specifications

Series	Flow code (USgpm)	Geometric displacement (mL/r)	Max pressure (Mpa)						Max speed (r/min)		Min speed (r/min)
			Antiwear hydraulic oil		General hydraulic oil or water-glycol ester fluid		Water glycol, phosphate ester fluid or water-oil emulsions		General hydraulic oil and antiwear hydraulic oil	Water glycol, phosphate ester fluid or water-oil emulsions
			Instant	Continuous	Instant	Continuous	Instant	Continuous
T6C	3	10.8	28	24.5	21	17.5	17.5	14	2800	1800	600
	5	17.2
	6	21.3
	8	25.4
	10	34.1
	12	37.1
	14	46
	17	58.3
	20	63.8
	22	70.3
	25	79.3							2500
	28	88.8	21	16		16
	31	100
T6D	14	47.6	24.5	21	21	17.5	17.5	14	2500	1800	600
	17	58.2
	20	66
	24	79.5
	28	89.7
	31	98.3
	35	111
	38	120.3
	42	136							2200
	45	145.7
	50	158	21	16		16
	61	190.5	12	8	8	8	8	8
T6E	42	132.3	24.5	21	21	17.5	17.5	14	2200	1800	600
	45	142.4
	50	158.5
	52	164.8
	57	179.8
	62	196.7
	66	213.3
	72	227.1
	85	269	9	7.5	7.5	7.5	7.5	7.5	2000
