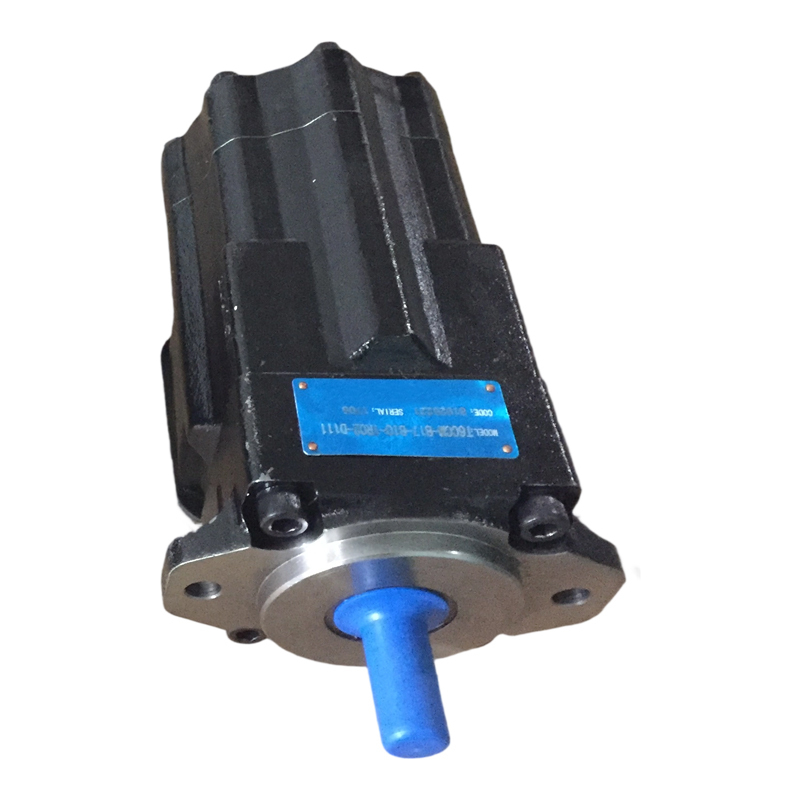

T6CCM Series Hydraulic Vane Pump for Industrial Machinery

Name: T6CCM Series Hydraulic Vane Pump for Industrial Machinery
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: T6CCM Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	T6CCM Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

T6CCM Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

T6CCM hydraulic vane pump

industrial hydraulic vane pump

high-performance hydraulic vane pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Hydraulic T6CCM Series Vane Pump Double Vane Pump

Features

1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.

2. As the vane pump adopts bilabial structure vane, it has high oil pollution resistance and wide speed scope.

3. For plastic machinery, casting machinery, metallurgy machinery, pressure machinery, refining machinery, construction machinery, marine-Machinery.

Model Description

T6CC	-25	-17	-1	R	2	-C	1	10
Series	Flow-shaft and Pump	Flow-cover end Pump	Shaft type	Rotation	Port Positions	Design number	Sealing Level	Port dimensions
T6CC	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31	See of shaft	(viewed from shaft end of pump) R: right hand for clockwise L: left hand for counter-clockwise	see pictures below	C	1-S1: Nitrile rubber (NBR) 5-S5: Fluororubber	00, 01, 10, 11, See installation dimensions
T6DC	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31						no options
T6EC	42, 45, 50, 52, 57, 62, 66, 72, 85	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31
T6ED	42, 45, 50, 52, 57, 62, 66, 72, 85	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61

Specifications

There are multiple combination methods for double vane pumps. For details, please refer to the parameters of single pumps.

Series	Flow code (USgpm)	Geometric displacement (mL/r)	Max pressure (Mpa)						Max speed (r/min)		Min speed (r/min)
			Antiwear hydraulic oil		General hydraulic oil or water-glycol ester fluid		Water glycol, phosphate ester fluid or water-oil emulsions		General hydraulic oil and antiwear hydraulic oil	Water glycol, phosphate ester fluid or water-oil emulsions
			Instant	Continuous	Instant	Continuous	Instant	Continuous
T6C	3	10.8	28	24.5	21	17.5	17.5	14	2800	1800	600
	5	17.2
	6	21.3
	8	25.4
	10	34.1
	12	37.1
	14	46
	17	58.3
	20	63.8
	22	70.3
	25	79.3							2500
	28	88.8	21	16		16
	31	100
T6D	14	47.6	24.5	21	21	17.5	17.5	14	2500	1800	600
	17	58.2
	20	66
	24	79.5
	28	89.7
	31	98.3
	35	111
	38	120.3
	42	136							2200
	45	145.7
	50	158	21	16		16
	61	190.5	12	8	8	8	8	8
T6E	42	132.3	24.5	21	21	17.5	17.5	14	2200	1800	600
	45	142.4
	50	158.5
	52	164.8
	57	179.8
	62	196.7
	66	213.3
	72	227.1
	85	269	9	7.5	7.5	7.5	7.5	7.5	2000
