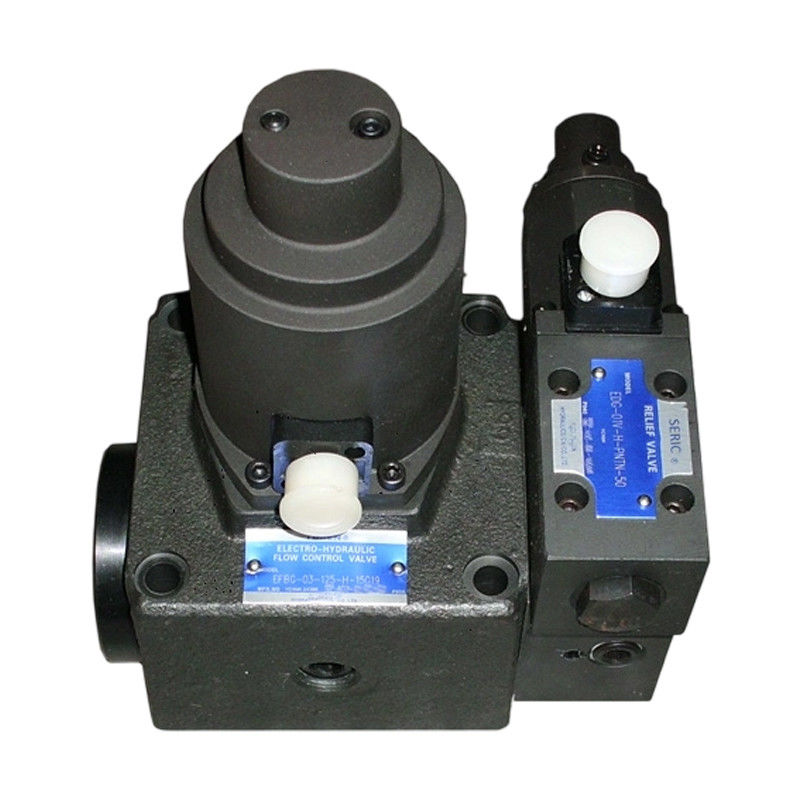

EFBG Series Proportional Relief Valve Hydraulic Proportional Flow Control Valve

Name: EFBG Series Proportional Relief Valve Hydraulic Proportional Flow Control Valve
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: EFBG Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	EFBG Series

Detail Information

Place of Origin:

Guangzhou

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

EFBG Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

EFBG Proportional Relief Valve Hydraulic

Proportional Relief Valve Hydraulic

EFBG Hydraulic Proportional Flow Control Valve

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Proportional Relief and Flow Control Valves EFBG Series

Features

40Ω-10Ω series

This relief and flow control valve is an energy-saving valve that supplies the minimum pressure and flow necessary for actuator drive.

Specifications

Model Numbers Descriptions			EFBG-03-125 - * - * - 61	EFBG-06-250 - * - * - 61	EFBG-10-500 - * - * - 61
Max. Operating Pressure (MPa)			24.5	24.5	24.5
Max. Flow (L/min)			125	250	500
Metered Flow Adjustment Range (L/min)			1 - 125	2.5 - 250	5 - 500
Min. Pilot Pressure (MPa)			1.5	1.5	1.5
Pilot Flow (L/min)		at Normal	1	1	1
Pilot Flow (L/min)		at Transition	3	4	6
Flow Controls	Rated Current (mA)		800	750	900
	Coil Resistance (Ω)		10	10	10
	Differential Pressure (MPa)		0.7	0.7	0.9
	Hysteresis		3% or less	3% or less	3% or less
	Repeatability		1% or less	1% or less	1% or less
Pressure Controls	Pres. Adj. Range (MPa)		C: 1.4 - 15.7 H: 1.4 - 24.5	C: 1.4 - 15.7 H: 1.4 - 24.5	C: 1.5 - 15.7 H: 1.5 - 24.5
	Rated Current (mA)		C: 890 H: 930	C: 820 H: 880	C: 800 H: 900
	Coil Resistance (Ω)		10	10	10
	Hysteresis		3% or less	3% or less	3% or less
	Repeatability		1% or less	1% or less	1% or less
Approx. Mass(kg)			Refer to pages H - 137 to H - 139

★1. The specifications for pressure controls are applied to models with proportional pilot relief valve. (Ex.EFBG-03-125-C-*-61)

★2.The maximum pressure adjustment range of the models without proportional pilot relief valves is 24.5 MPa.
