SQP Series Low Noise Double Vane Pump SQP21 SQP31 SQP41 SQP32 SQP42 SQP43

Name: SQP Series Low Noise Double Vane Pump SQP21 SQP31 SQP41 SQP32 SQP42 SQP43
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: SQP Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	SQP Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

SQP Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Double Vane Pump SQP21

Double Vane Pump SQP31

Low Noise Vane Pump SQP42

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

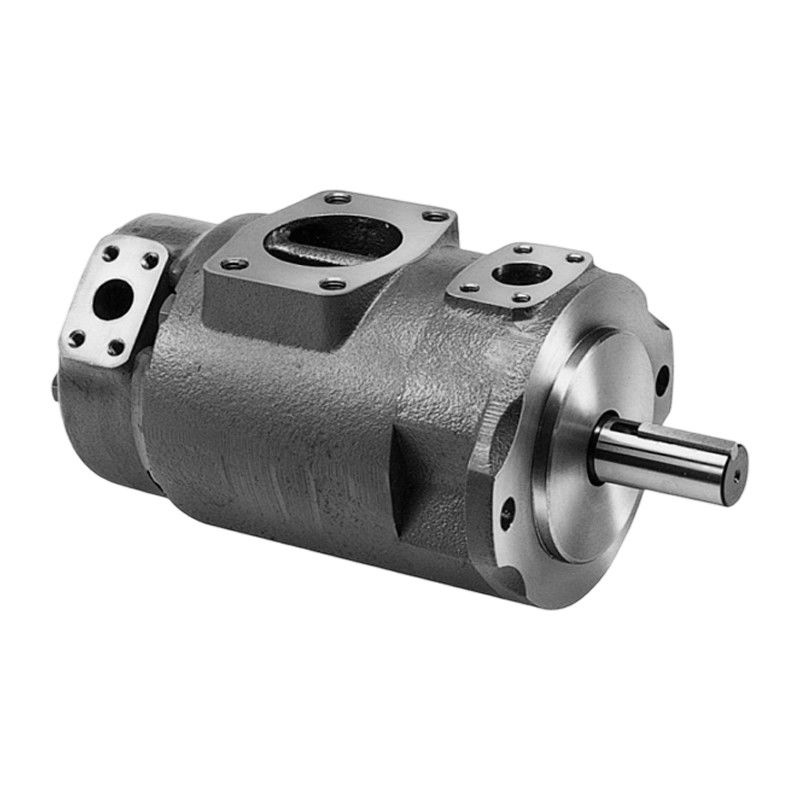

SQP Series Double Vane Pump SQP21 SQP31 SQP41 SQP32 SQP42 SQP43 Low Noise

Features

Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.

SQP21, SQP31, SQP32, SQP41, SQP42, SQP43, each section pump flow code, see single pump technical data.

Specifications

Model	First Pump (Shaft Side)			Second Pump (Pump Cover Side)
Model	Displacement Mark	Displacement at 1000min⁻¹ and 0.7MPa (L/min)	Maximum Operating Pressure (MPa)	Displacement Mark	Displacement at 1000min⁻¹ and 0.7MPa (L/min)	Maximum Operating Pressure (MPa)	Maximum Speed (min⁻¹)	Minimum Speed (min⁻¹)
SQP(S)21	10	32.5	17.5 *(14)	2	7.5	14 *(14)	1800 ▲(1200) *(1200)	600
	12	38.3		3	10.2	14 *(14)
	14	43.3		4	12.8	17.5 *(14)
	15	46.7		5	16.7
	17	52.5
	19	59.2
	21	65
SQP(S)31	17	53.3	17.5 *(14)	6	19.2
	21	66.7		7	22.9
	25	79.2		8	26.2
	30	95		9	28.3
	32	100
	35	109
	38	118
SQP(S)41	30	96	17.5 *(14)	11	35
	35	109		12	37.9	16 *(14)
	38	128		14	44.2	14 *(14)
	42	134
	50	156
	60	189
SQP(S)32	17	53.3	17.5 *(14)	10	32.5	17.5 *(14)
	21	66.7		12	38.3
	25	79.2		14	43.3
	30	95		15	46.7
	32	100
	35	109
	38	118
SQP(S)42	30	96	17.5 *(14)	17	52.5
	35	109		19	59.2
	38	128		21	65
	42	134
	50	156
	60	189
SQP(S)43	30	96	17.5 *(14)	17	53.3	17.5 *(14)
	35	109		21	66.7
	38	128		25	79.2
	42	134		30	95
	42	134		32	100
	50	156		35	109
	60	189		38	118

*Maximum operating pressure and maximum speed for F3-SQP(S) when using phosphate ester hydraulic oil

▲Maximum speed for F11-SQP(S) when using water - glycol hydraulic oil
