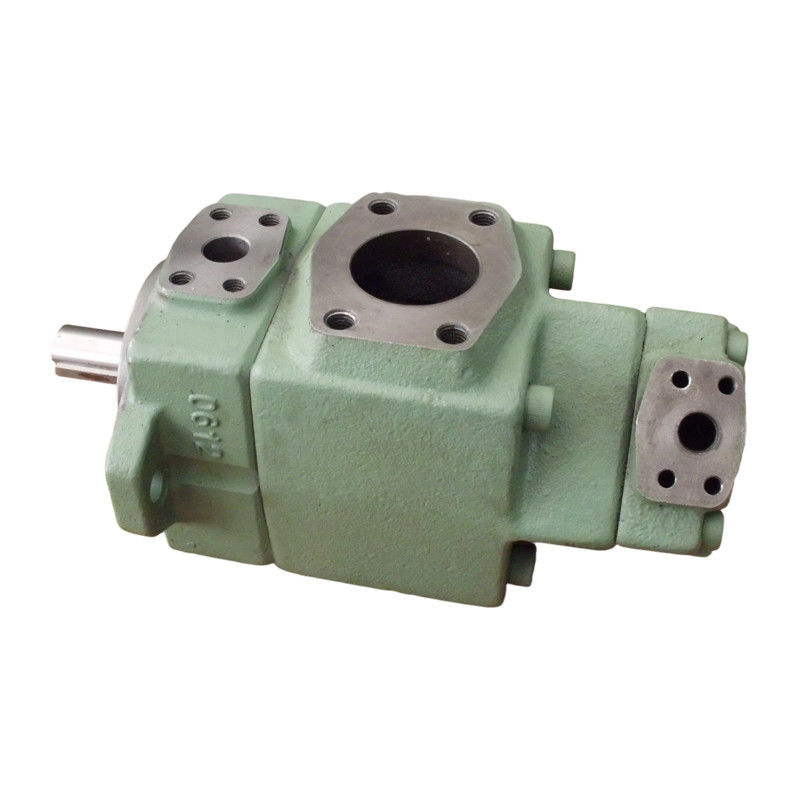

Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23

Name: Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: PV2R Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	PV2R Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

PV2R Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Hydraulic Vane Pump PV2R12

Hydraulic Vane Pump PV2R13

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Hydraulic Double Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23

Features

1. This type of pump is assembled by two PV2R single pumps driven by the same shaft and connected in parallel, all enclosed within the same housing.

2. The output flow can be directed to two independent circuits.

Model Number Designation

PV2R13	-6	-76	-L	-R	A	A	A	-43
Series Number	Nominal Displacement of Small-flow Pump (cm³/rev)	Nominal Displacement of Large-flow Pump (cm³/rev)	Mounting Type	Rotation Direction	Outlet Position of Small-flow Pump	Outlet Position of Large-flow Pump	Suction Port Position	Design Number
PV2R12*	6, 8, 10, 12, 14, 17, 19, 23, 25, 31	26, 33, 41, 47, 53, 59, 65	L: Base Mounting Type F: Flange Mounting Type	(Viewed from Shaft Extension End) R: Clockwise Direction (Standard)*	(Viewed from Shaft Extension End) E: 45° Upper Left (Standard)	(Viewed from Shaft Extension End) A: Upper (Standard)	(Viewed from Shaft Extension End) A: Upper (Standard)	43
PV2R13*	6, 8, 10, 12, 14, 17, 19, 23, 25, 31	76, 94, 116			A: Upper (Standard)			43
PV2R23*	41, 47, 53, 59, 65	52, 60, 66, 76, 94, 116			E: 45° Upper Left (Standard)			41

Specifications

Maximum Working Pressure

Model		Maximum Working Pressure (MPa)
		Petroleum-based Hydraulic Oil		Water-containing Hydraulic Oil		Synthetic Hydraulic Oil
		Anti-wear Oil	Ordinary Oil	AW Water-glycol Fluid	Water-glycol Fluid	Phosphate Ester Fluid
PV2R12	Small-flow Pump	21	16	16	7	16
PV2R12	Large-flow Pump	21	14	16	7	14
PV2R13	Small-flow Pump	21	16	16	7	16
PV2R13	Large-flow Pump	21	14	16	7	14
PV2R23	Small-flow Pump	21	14	16	7	14
PV2R23	Large-flow Pump	21	14	16	7	14

Allowable Rotational Speed Range, Output Flow, Input Power, Mass

Model	Allowable Rotational Speed Range (r/min)				Water-containing Hydraulic Fluid, Phosphate Ester Fluid		Mass (kg)
	Petroleum-based Hydraulic Oil		Water-containing Hydraulic Fluid, Phosphate Ester Fluid		Water-containing Hydraulic Fluid, Phosphate Ester Fluid		Mass (kg)
	Maximum	Minimum	Maximum	Minimum	Small-flow Pump	Large-flow Pump	Flange Mounting Type	Base Mounting Type
PV2R12	1800	750	1200	750	Same as PV2R1 single pump (Refer to pages 180 - 182)	Same as PV2R2 single pump (Refer to pages 182, 183) But for nominal displacements of 26 and 33, see page 192	25	29.3
PV2R13	1800	750	1200	750	Same as PV2R1 single pump (Refer to pages 180 - 182)	Same as PV2R3 single pump (Refer to pages 183, 184)	45.6	55.6
PV2R23	1800	600	1200	600	Same as PV2R2 single pump (Refer to pages 182 - 183)	Same as PV2R3 single pump (Refer to pages 183, 184) But for nominal displacements of 52, 60 and 66, see page 193	51	61
