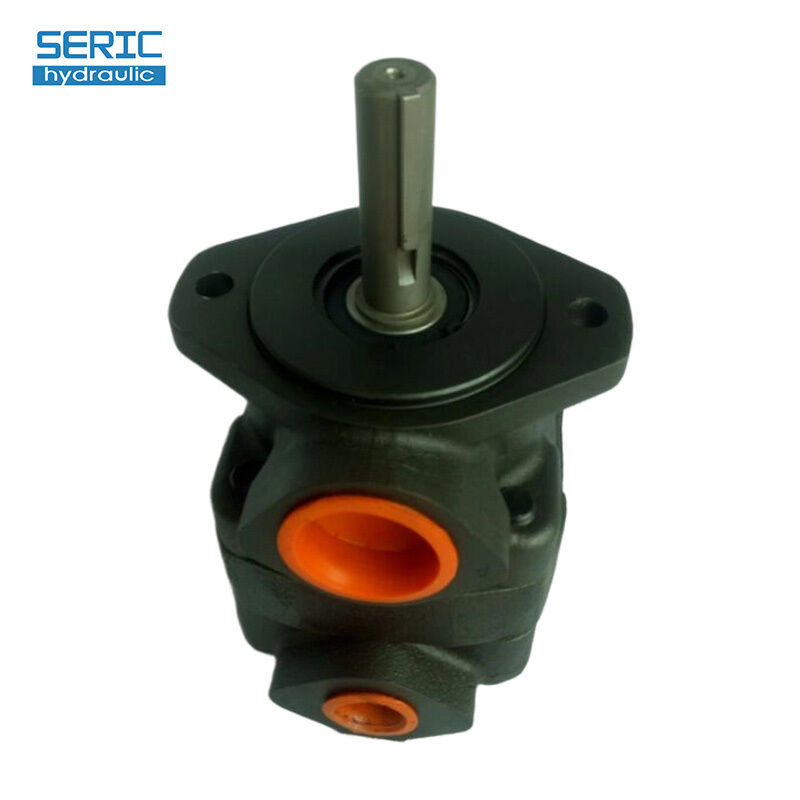

V20 Series Oil Vane Pump Single Pump Power Steering Vane Pump

Name: V20 Series Oil Vane Pump Single Pump Power Steering Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

V20 Series oil vane pump

single pump power steering

hydraulic vane pump with warranty

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

V20 Series Oil Vane Pump Single Pump Power Steering Vane Pump

Features

l Low Noise‌: Operates quietly.

l High Pressure‌: Delivers strong pressure output.

l Long Life‌: Durable design for extended use.

l Stable Flow‌: Ensures smooth and consistent fluid delivery.

l Strong Adaptability‌: Performs well in various conditions.

l Reliable‌: Consistently meets performance requirements.

V20 Type Single Pump Operating Specifications

Series	U.S. GPM	Displ. (cm³/r)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Min. Speed (rpm)
V20	6	19.5	17.5	3400	600
	7	22.8	17.5	3000
	8	26.5	17.5	2800
	9	29.7	17.5	2800
	11	36.4	17.5	2500
	12	39	16	2400
	13	42.4	16	2400

V20 Type Single Pump-Model Code

V20	-1	P	11	P	-1	C	11	R
Series	Mounting	Inlet Port Connections	U.S. GPM	Outlet Port Connections	Shafts	Outlet Positions	Design Number	Rotaiton
V20	1-2 bolt flange 6-2 bolt flange (SAE"B")	P-1 1/4" NPT thd. S-st. thd.	6,7,8, 9,11, 12,13,	P-1/2 NPT thd. S-st.thd.	1-str key 11-spline 38-spline 62-SAE A spline	(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet	11	(Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise
