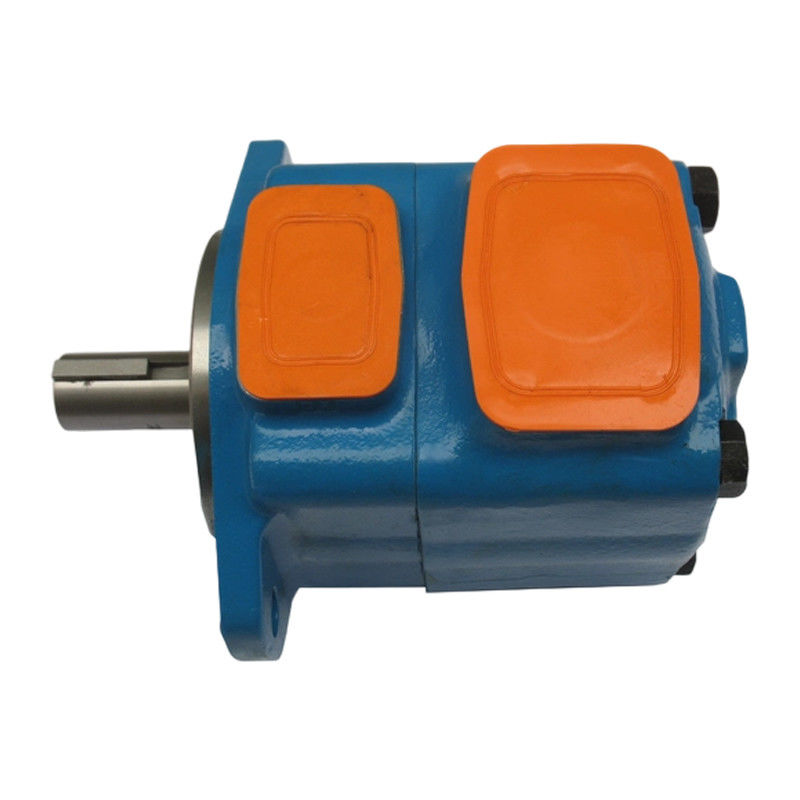

V Series Hydraulic Vane Pump 20V 25V 35V 45V Single Vane Pump

Name: V Series Hydraulic Vane Pump 20V 25V 35V 45V Single Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Price: 100.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Hydraulic Vane Pump 20V

Hydraulic Vane Pump 25V

45V Single Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD100.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

V Series Single Vane Pump Hydraulic Pump 20V 25V 35V 45V

Features

High-pressure and high-performance pumps, specifically developed for low-noise operation.
Designed to suit various applications like injection moulding machines.
Integral driving parts are combined into a kit form and available as a cartridge kit, enabling easy replacement of driving parts.

Specifications

Series	Code (U.S. GPM)	Displ. (ml/r)	With Antiwear Hydraulic Oil or Phosphate Ester Fluid		With Water Glycol Fluid		With Water-oil Emulsons		Min. Speed (rpm)
Series	Code (U.S. GPM)	Displ. (ml/r)	Max. Operating Pressure (Mpa)	Max. Speed (rpm)	Max. (Mpa)	Max. Speed (rpm)	Max. (Mpa)	Max. Speed (rpm)	Min. Speed (rpm)
20V	2	7.5	14	1800	14	1500	7	1200	600
	3	10	14		14
	4	13			16
	5	16.5
	6	19
	7	23
	8	27
	9	30
	10	32
	11	36
	12	40	16
	14	45	14		14
25V	10	32.5	17.5		16
	12	39
	14	45
	15	47
	17	55)
	19	60
	21	67
35V	21	67	17.5		16
	25	81
	30	97
	32	101
	35	112
	38	121
45V	42	138	17.5		16
	45	147
	50	162
	57	181
	60	193
	66	212
	75	237	14		14

Model Number Designation

(F3-)	**V	*	A	(F)	-*	*	22	*
Prefix	Series Number	Displacement Code	Port Connection	Mounting Method	Shaft Extension Form	Outlet Position	Design Number	Rotation Direction
No mark: Petroleum - based Emulsion, Water-Glycol F3: Phosphate Ester Fluid	20V	2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14	A-SAE 4 - Bolt Connection	No mark: Flange Mounting F: Foot Mounting	1 - Keyed Straight Shaft 151 - Spline Shaft 86 - Heavy - duty Keyed Straight Shaft 11 - Spline Shaft	(Viewed from the Cover End of the Pump) A - Opposite to the Inlet Port B - 90° Counterclockwise from the Inlet Port C - On the same side as the inlet port D - 90° Clockwise from the Inlet Port	22	(Viewed from the Shaft End of the Pump) L - Counterclockwise Rotation R - Clockwise Rotation
	25V	10, 12, 14, 17, 19, 21
	35V	21, 25, 30, 32, 35, 38, 45
	45V	42, 45, 50, 57, 60, 66, 75
